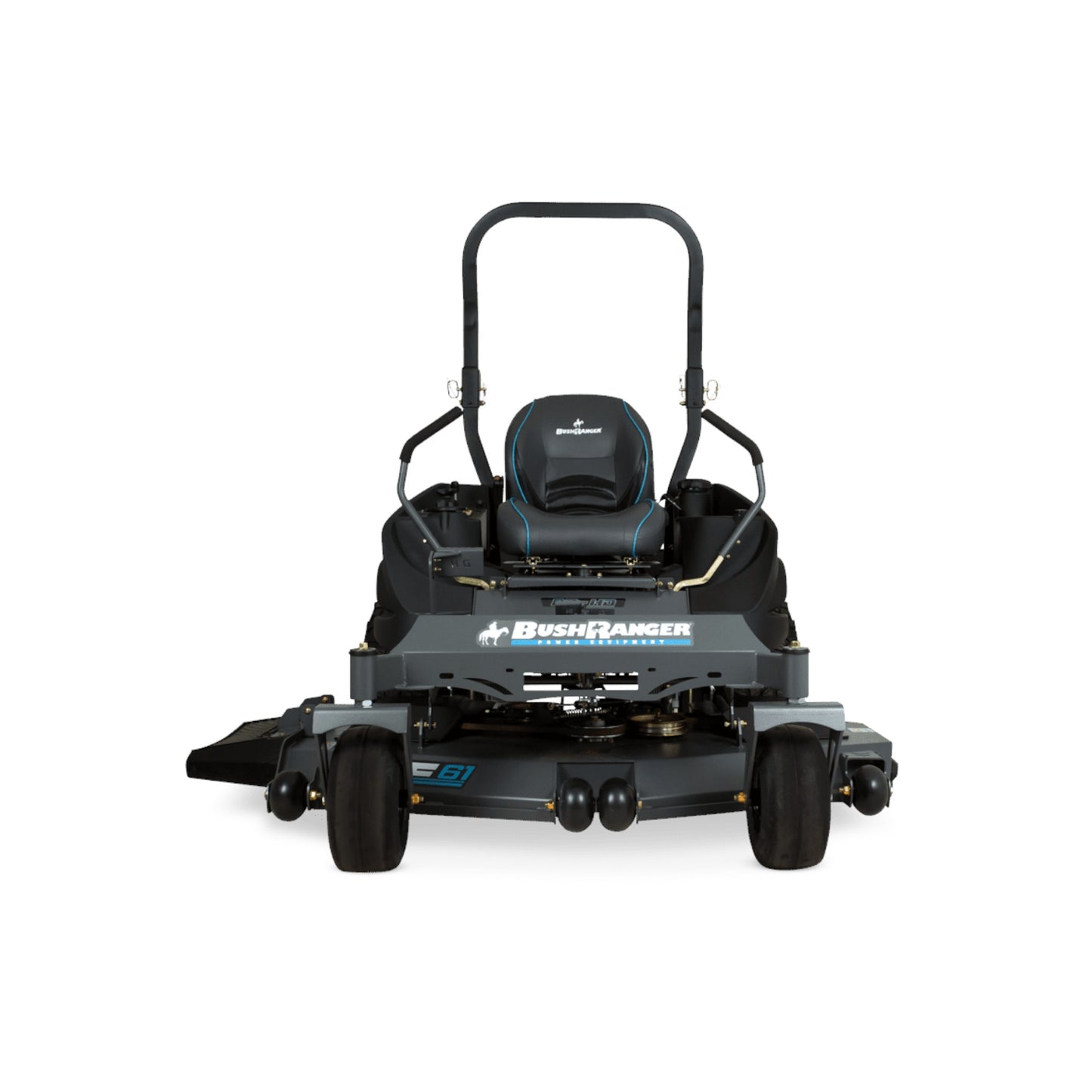

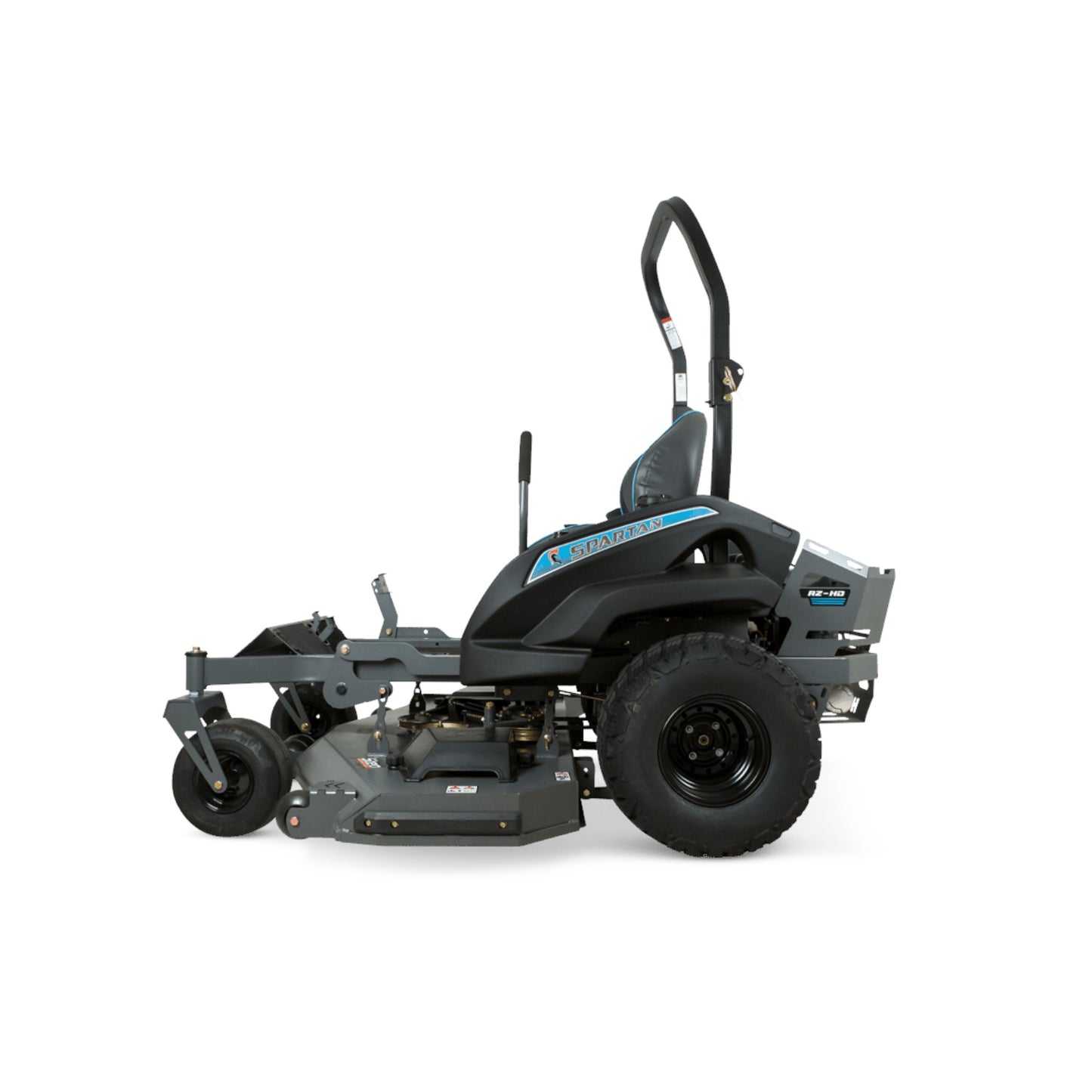

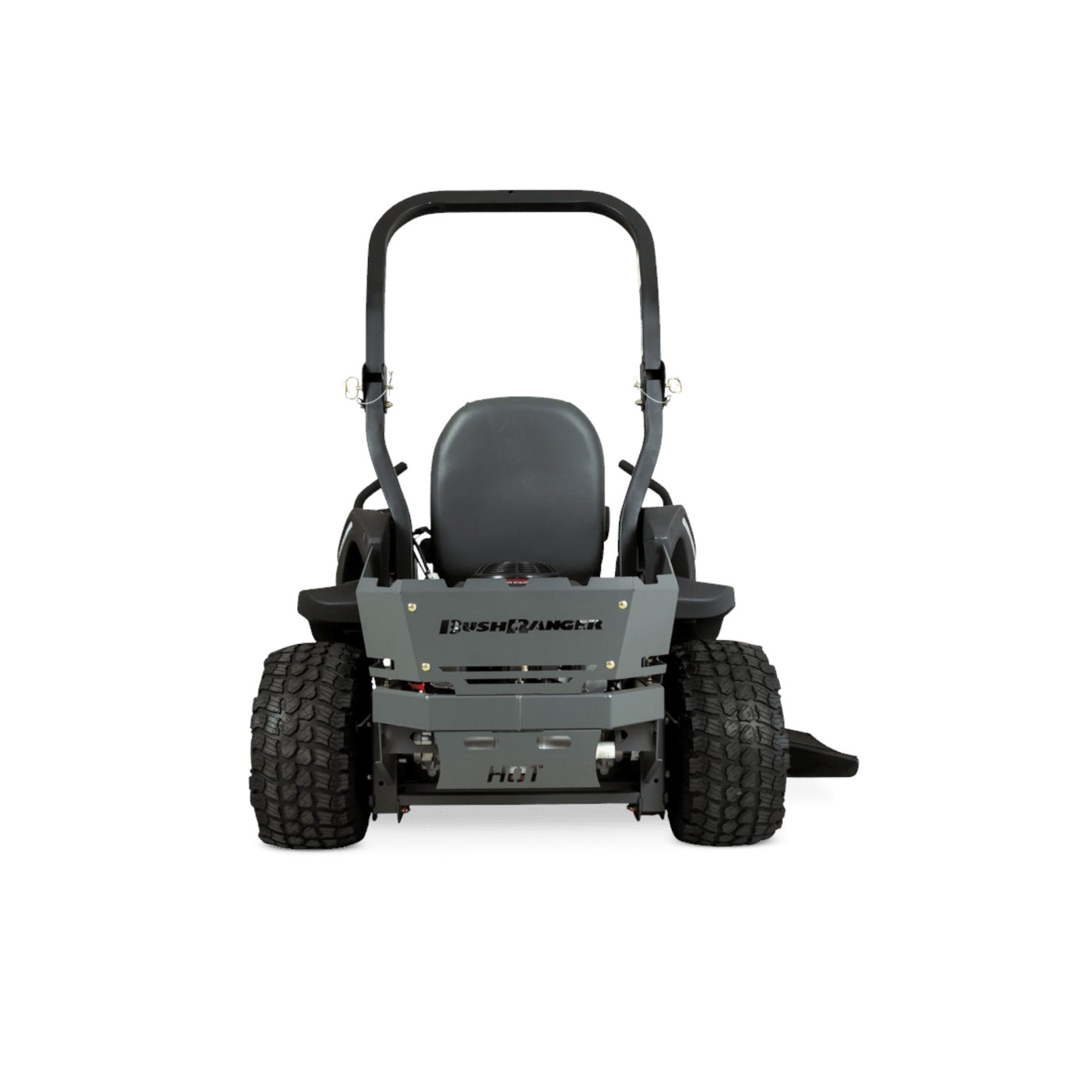

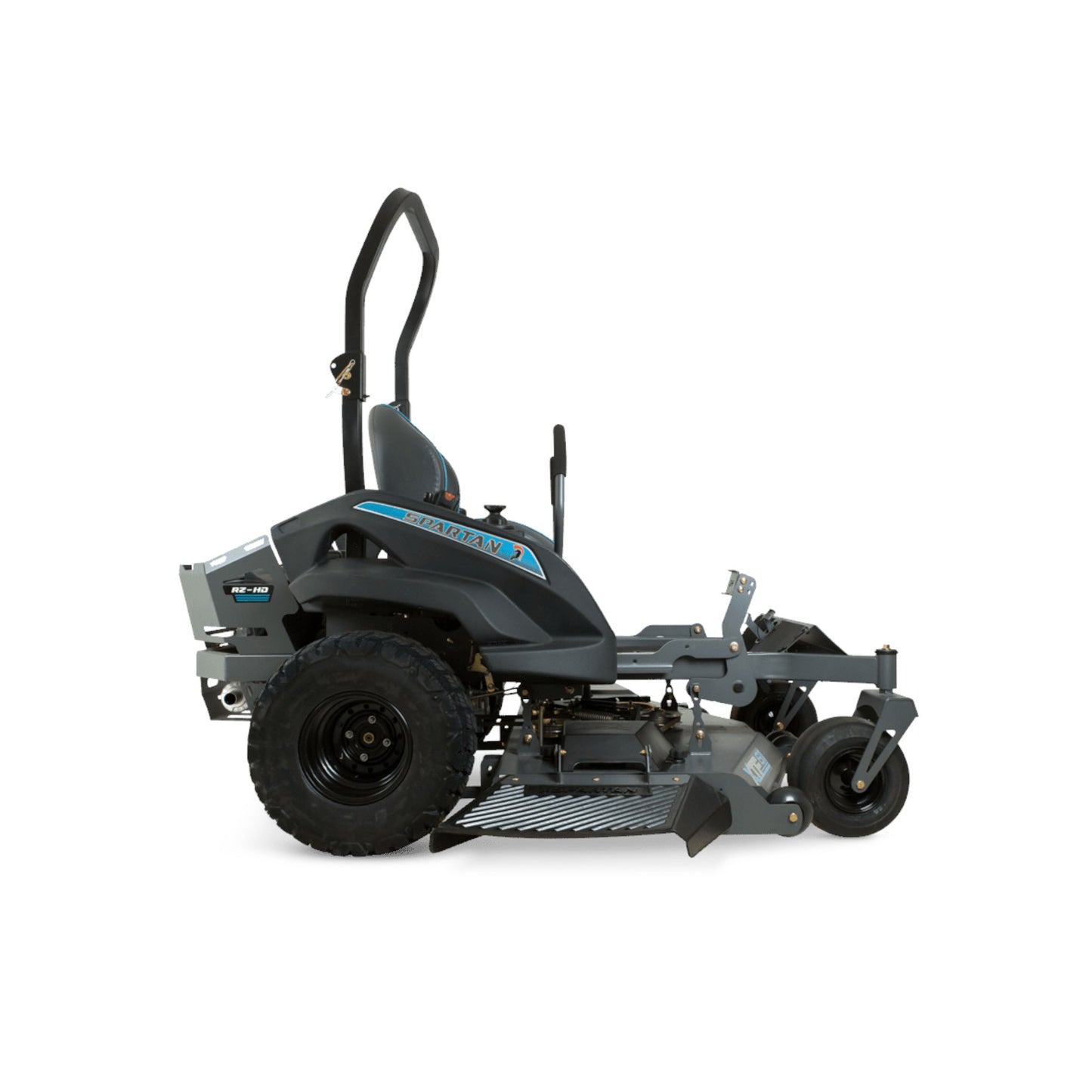

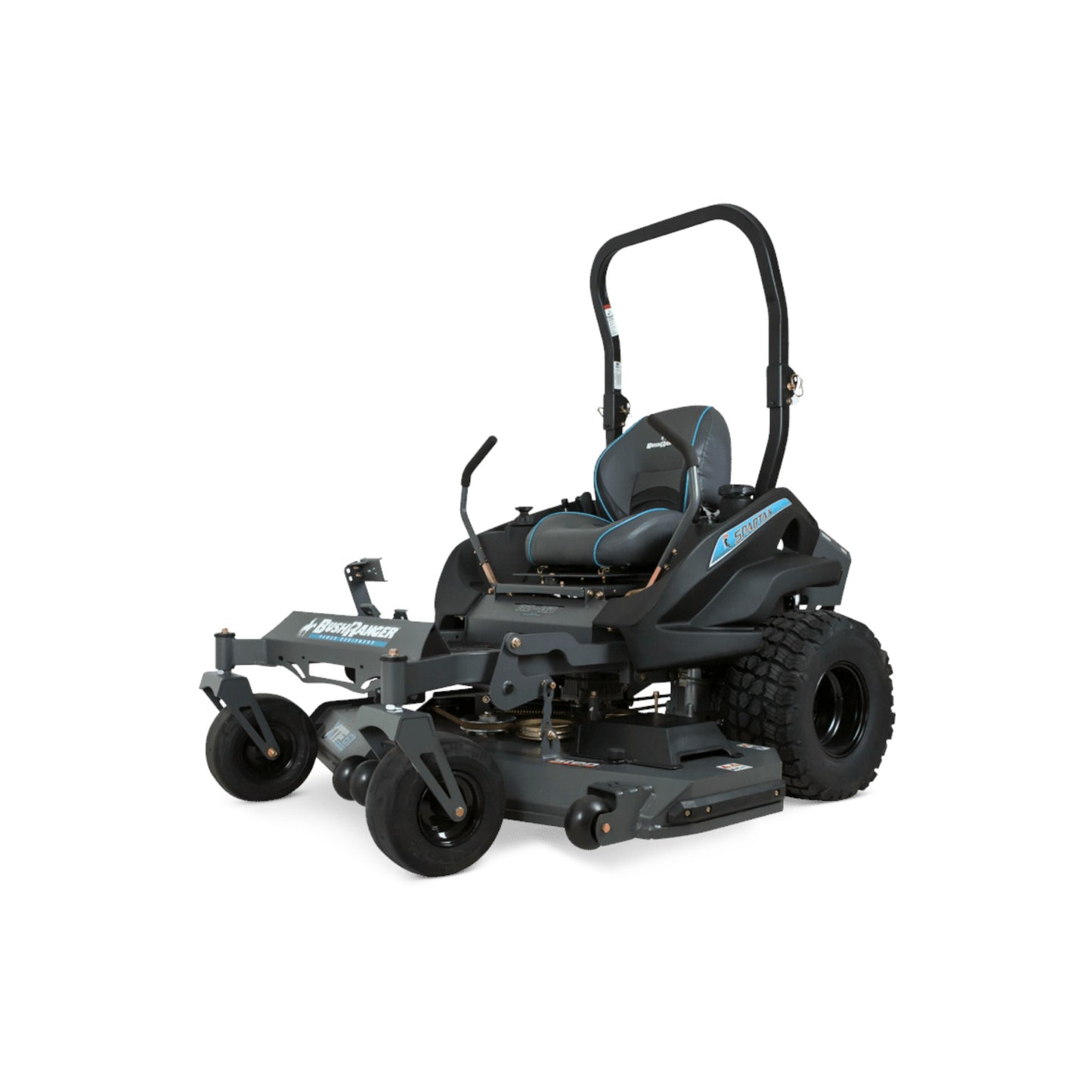

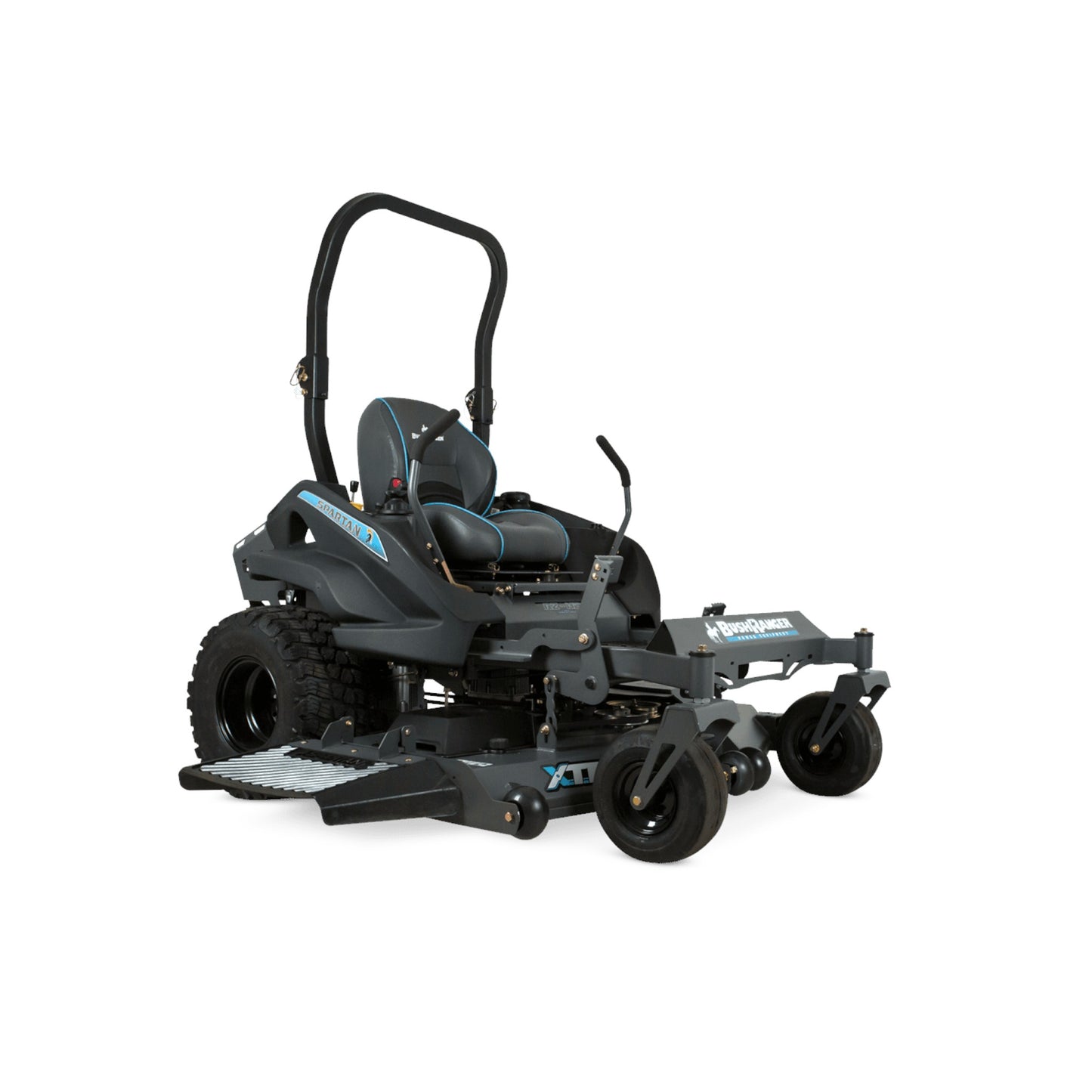

Bushranger Spartan RZHD 61" Zero Turn Mower

GO FURTHER WITH THE RZHD 61" BACKED BY POWER, COMFORT AND THE CLEANEST CUTS EVERY USE.

DETAILS

The Bushranger RZHD series ZTR’S are built and perform like a commercial grade mower but at an affordable price. The Bushranger RZHD handles lawns of all sizes with ease and comes packed with premium features that are all included as standard, and truly make the Bushranger RZHD stand out from the rest. Features like the commercial grade Kawasaki FR730V V-Twin engine, safety features like being perfectly balanced with a low centre of gravity combined with GT Trac for the best traction on inclines. The easy touch brake system, the foot assist easy-lift deck, an ergonomic cockpit with an extremely comfortable seat and large fuel tank will have you happily and safely mowing for hours without having to stop until the jobs done.

WATCH THE VIDEO

FEATURES

Kawasaki FR730V premium and commercial grade V-Twin engine.

Engine guard.

Up to 14.48 kph top speed.

18.9 litres fuel capacity.

Heavy-duty fabricated steel, 5” deep, full floating deck.

Change on the go deck height dial with shock-assisted deck foot lift.

Cast aluminium spindles with sealed double bearings.

Long lasting deck belts are designed with large idler pulleys to minimise wear.

Vibration control deck system.

Fabricated heavy-duty steel frame.

ZTR is perfectly balanced with low centre of gravity.

GT-Trac for precision traction, balance and control on inclines.

Parker HTE 10cc wheel motors.

Foot-operated parking brake.

Control panel with LCD display, an engine hour meter, mower deck hour meter and tachometer.

Push-start keypad.

12v Outlet.

Seat: RZ HD seat.

22" drive tyres - turf radials.

13" front caster tyres - smooth tread.

SPECIFICATIONS

All specifications are subject to change without notice.

Domestic Warranty

3 Years / 400 Hours Domestic Warranty (whichever comes first)

Commercial Warranty

3 Years / 400 Hours Commercial Warranty (whichever comes first)

Hire/Rental Warranty

No Hire/Rental Warranty

Engine

Kawasaki FR730V

Horsepower

24.0 hp (17.9 kW) @ 3600 rpm (Please Note: Horsepower rating as tested to SAE J1995 Standards)

Blade Length

18.9 Litres

Dry Weight

385.1 kg (849 lbs)

Fuel

Unleaded fuel - maximum of 10% ethanol in fuel (see engine manufacturers specifications)

Drive System

Parker HTE 10cc wheel motors

Ground Speed - Forward

Infinitely variable up to 0-14.48 kph

Brakes

Foot Operated parking brake

Caster Tyres

13”, smooth tread

Tyres - Drive

22” Turf radials

Seat

RZ HD seat

Height

75" (1905 mm) with ROPS up, 54” (1372mm) folding ROPS down

Width

61" (1550 mm) cut side discharge

Deck System

Side-Discharge: 61" (1550 mm) cut. (3) Blades, deck is suspended at two points at the rear and two in front. Includes deck-mounted anti-scalp wheel(s) to improve flotation in rolling and uneven terrain

Cutting Widths

61" (1550 mm) cut side discharge

Deck Lift

Foot-operated with shock assist

Deck Construction

Heavy-duty fabricated steel, 5” deep, full floating deck.

Cutting Height(s)

Change on the go deck height dial with shock-assisted deck foot lift. 1” to 4.25” (25.4 mm to 107.95 mm) with 15 adjustable cut heights in between plus travel lock

Blade(s)

(3) Heavy-duty blades

Blade Tip Speed

18,749 fpm / 5,714.69 mpm

Discharge Chute

High density, rubberised

Length

84" (2133.6 mm)

Open Deck

Grass clears deck and discharge chute more easily due to the design (No restricting bar on the discharge side)
