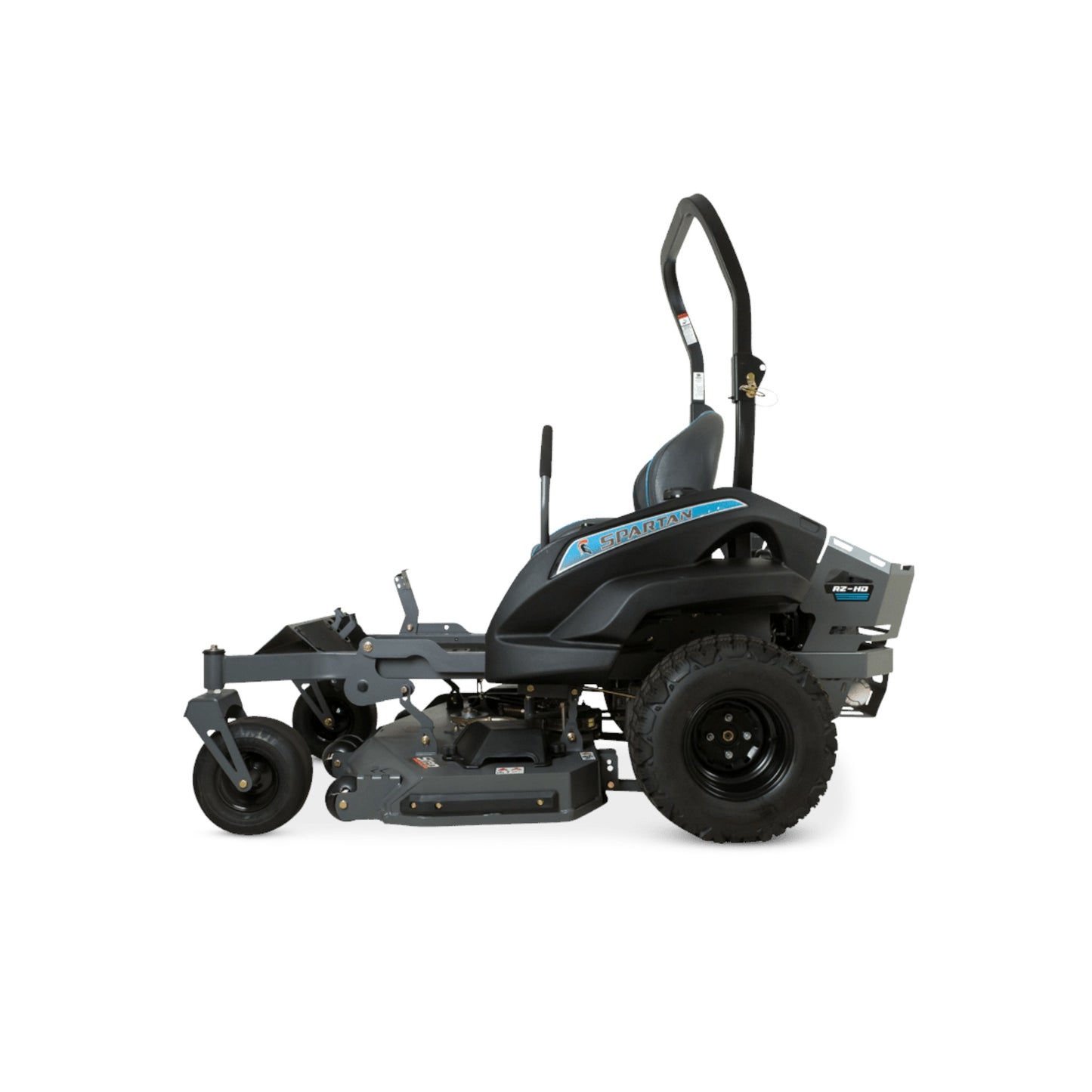

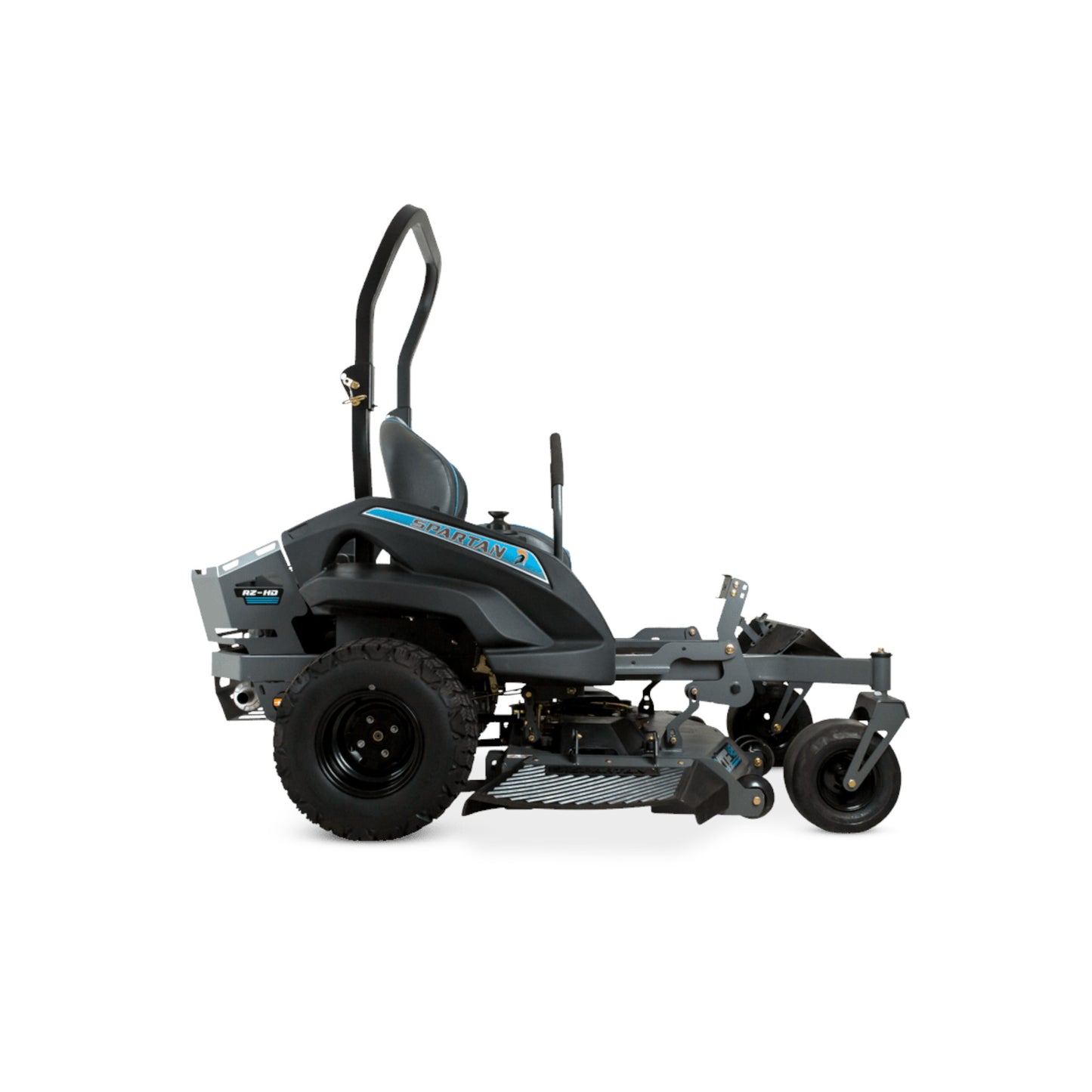

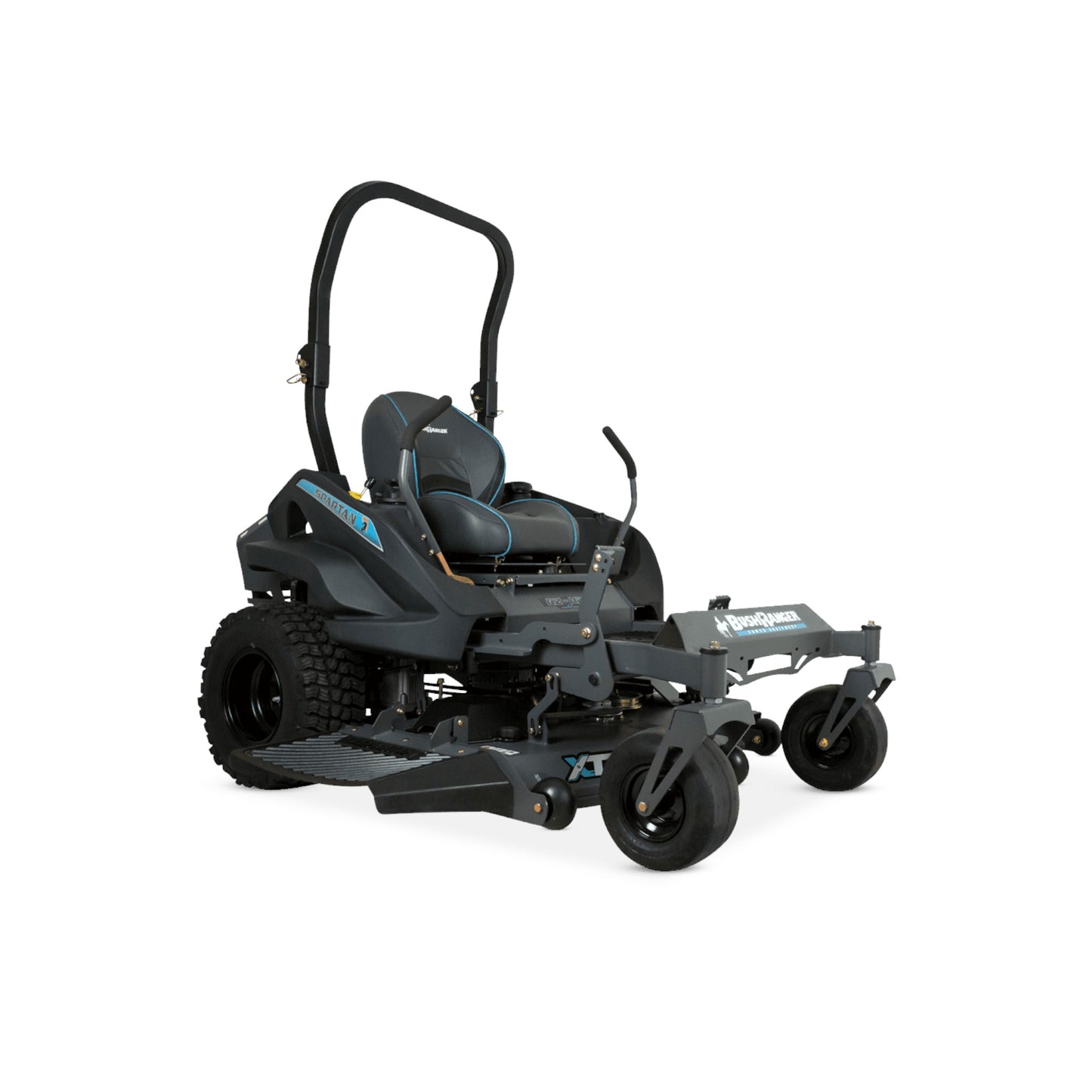

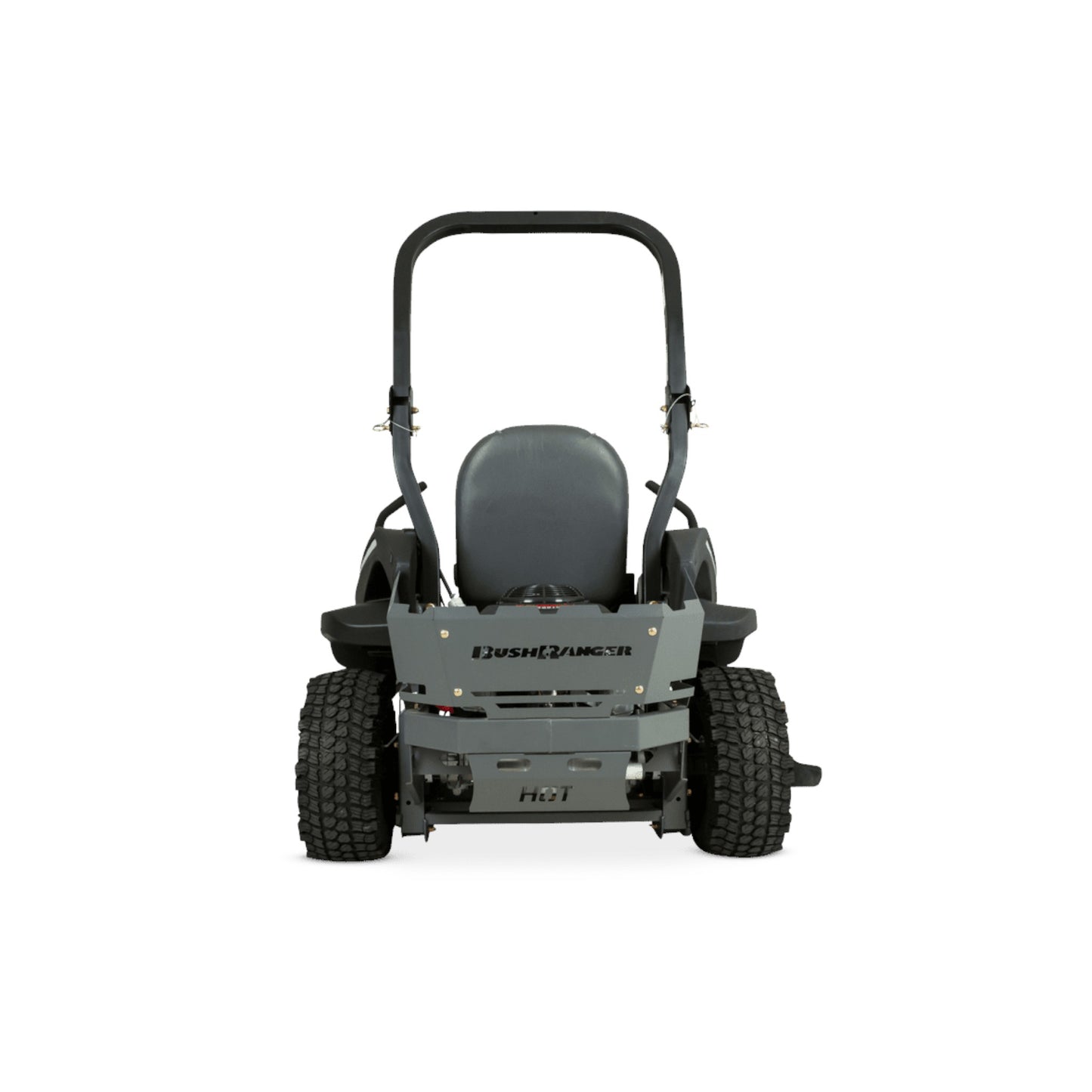

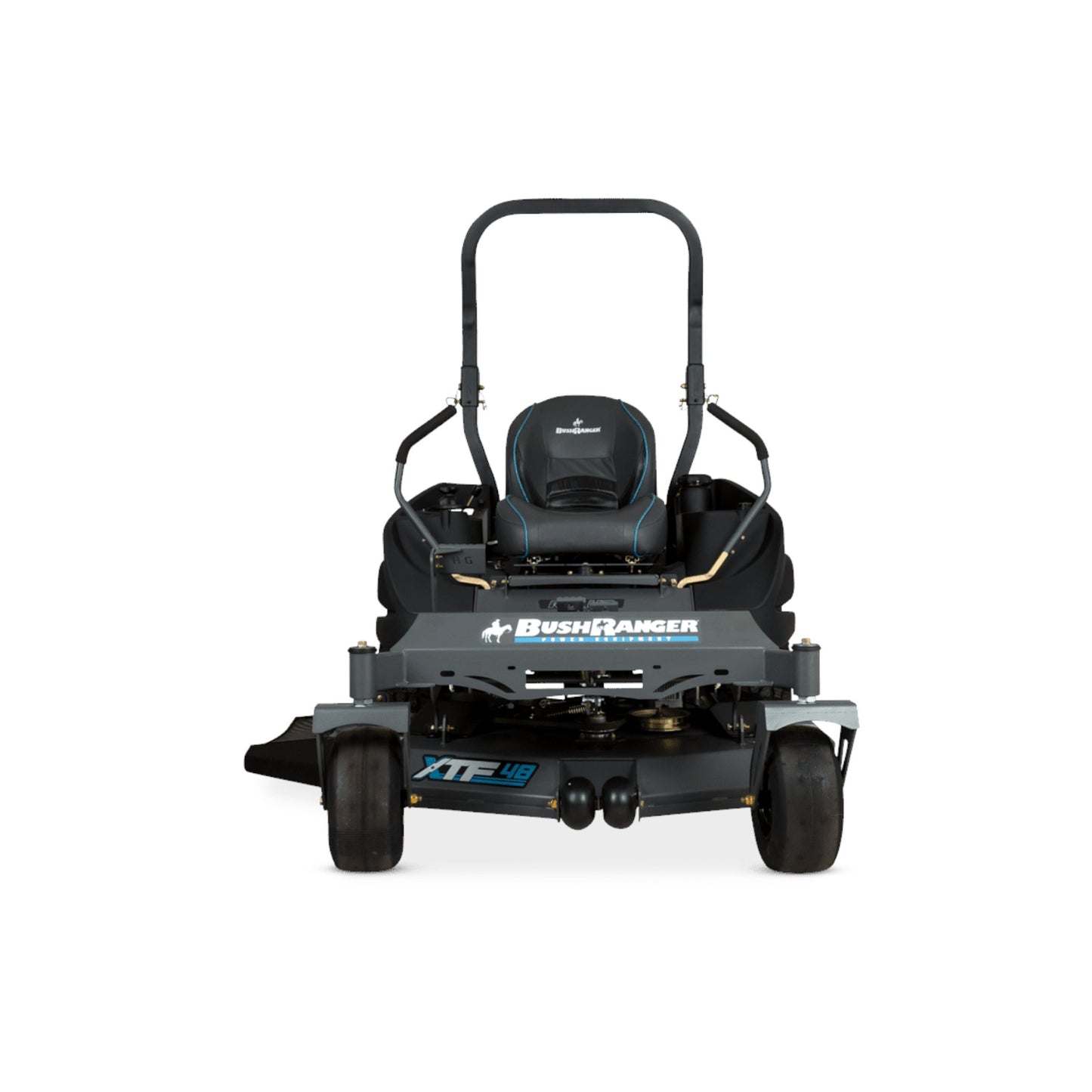

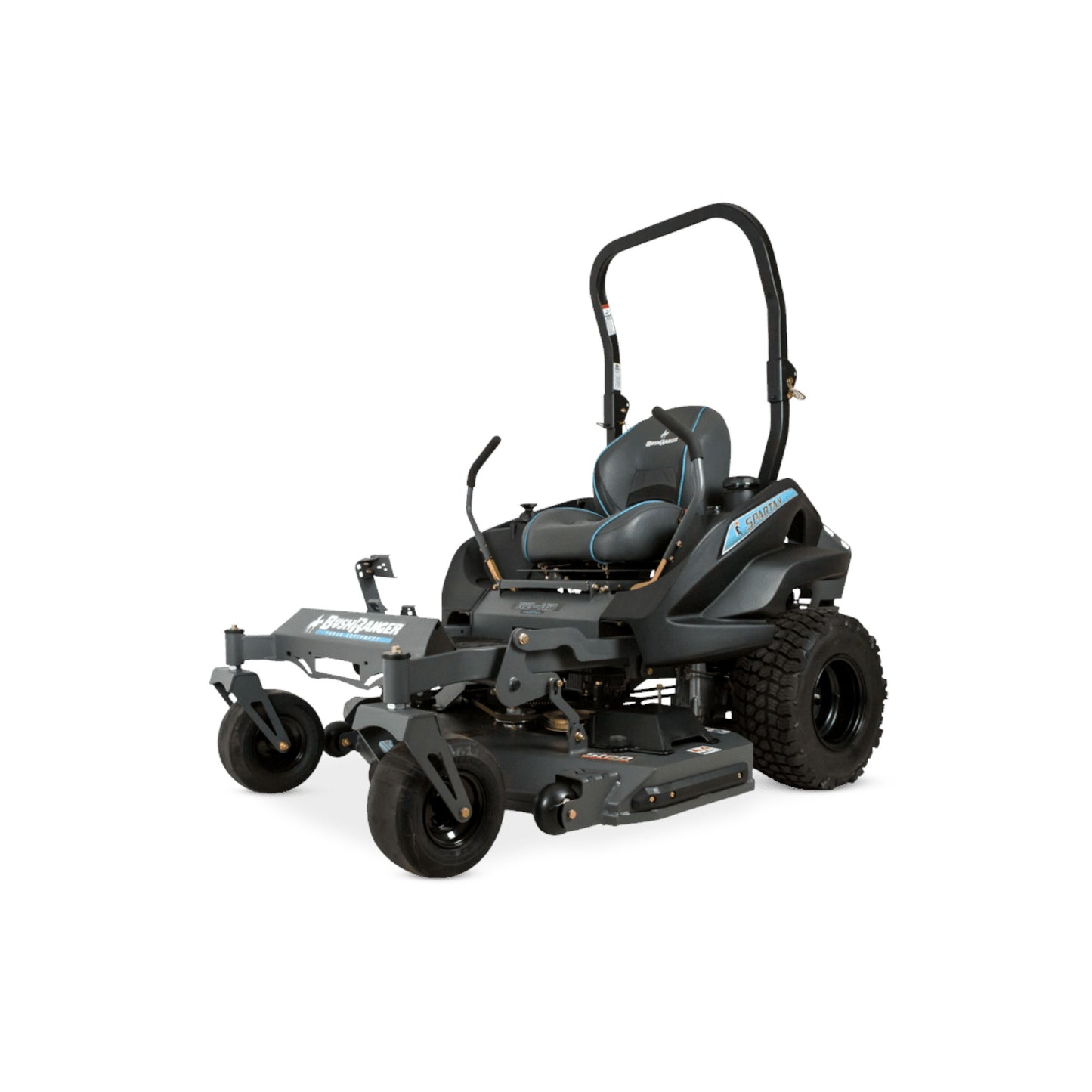

Bushranger Spartan RZHD 48" Zero Turn Mower

THE RZHD 48" IS PERFECT FOR SMALL-MID SIZE ACREAGE, BUT DON'T BE FOOLED THIS UNIT HANDLES THE TOUGH JOBS TOO.

DETAILS

The Bushranger Spartan RZHD range offers 3 cutting deck sizes giving you the flexibility to choose exactly which mower suits your needs. The RZHD 48" range is backed by a powerful Kawasaki V-Twin engine, giving you the power where and when you need it. This unit won’t dissappoint.

WATCH THE VIDEO

FEATURES

Kawasaki FR691V premium and commercial grade V-Twin engine

Engine Guard.

Up to 14.48 kph top speed.

18.9 litres fuel capacity.

Heavy-duty fabricated steel, 5” deep, full floating deck.

Change on the go deck height dial with shock-assisted deck foot lift.

Cast aluminium spindles with sealed double bearings.

Long lasting deck belts are designed with large idler pulleys to minimise wear.

Vibration control deck system.

Fabricated heavy-duty steel frame.

ZTR is perfectly balanced with low centre of gravity.

GT-Trac for precision traction, balance and control on inclines.

Parker HTE 10cc wheel motors.

Foot-operated parking brake.

Control panel with LCD display, an engine hour meter, mower deck hour meter and tachometer.

Push-start keypad.

12v Outlet.

Seat: RZ HD seat.

22" drive tyres - turf radial.

13" front caster tyres - smooth tread.

SPECIFICATIONS

All specifications are subject to change without notice.

Domestic Warranty

3 Years / 400 Hours Domestic Warranty (whichever comes first)

Commercial Warranty

3 Years / 400 Hours Commercial Warranty (whichever comes first)

Hire/Rental Warranty

No Hire / Rental Warranty

Engine

Kawasaki FR691V

Horsepower

23.0 hp (17.2 kW) @ 3600 rpm (Please Note: Horsepower rating as tested to SAE J1995 Standards)

Fuel Capacity

18.9 Litres

Dry Weight

418.2 kg (922 lbs)

Fuel

Unleaded fuel - maximum of 10% ethanol in fuel (see engine manufacturers specifications)

Drive System

Parker HTE 10cc wheel motors

Ground Speed - Forward

Infinitely variable up to 0-14.48 kph

Brakes

Foot-operated parking brake

Caster Tyres

13”, smooth tread

Tyres - Drive

22” Turf radials

Seat

RZ HD seat

Hour Meter

Standard

Height

75" (1905 mm) with ROPS up, 54” (1372mm) folding ROPS down

Width

49.5" (1257.3 mm) w/discharge chute up

Deck System

Side-Discharge: 48" (1220 mm) cut. (3) Blades, deck is suspended at two points at the rear and two in front. Includes deck-mounted anti-scalp wheel(s) to improve flotation in rolling and uneven terrain

Cutting Widths

48" (1220 mm) cut side discharge

Deck Lift

Foot-operated with shock assist

Deck Construction

Heavy-duty fabricated steel, 5” deep, full floating deck

Cutting Height(s)

Change on the go deck height dial with shock-assisted deck foot lift. 1” to 4.25” (25.4 mm to 107.95 mm) with 15 adjustable cut heights in between plus travel lock

Blade(s)

(3) Heavy-duty blades

Blade Tip Speed

18,913 fpm / 5,764.68 mpm

Discharge Chute

High density, rubberised

Length

84" (2133.6 mm)

Open Deck

Grass clears deck and discharge chute more easily due to the design (No restricting bar on the discharge side)
