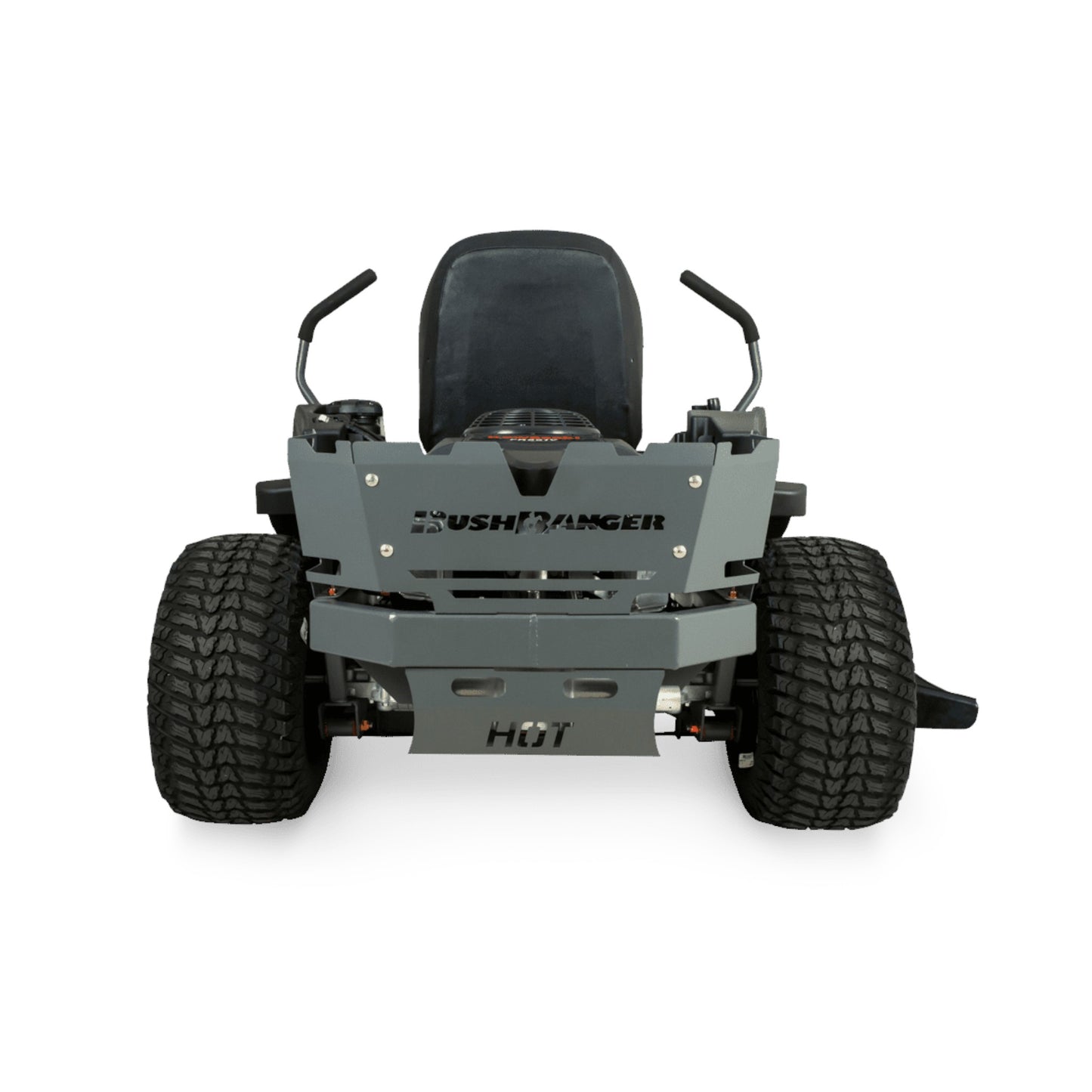

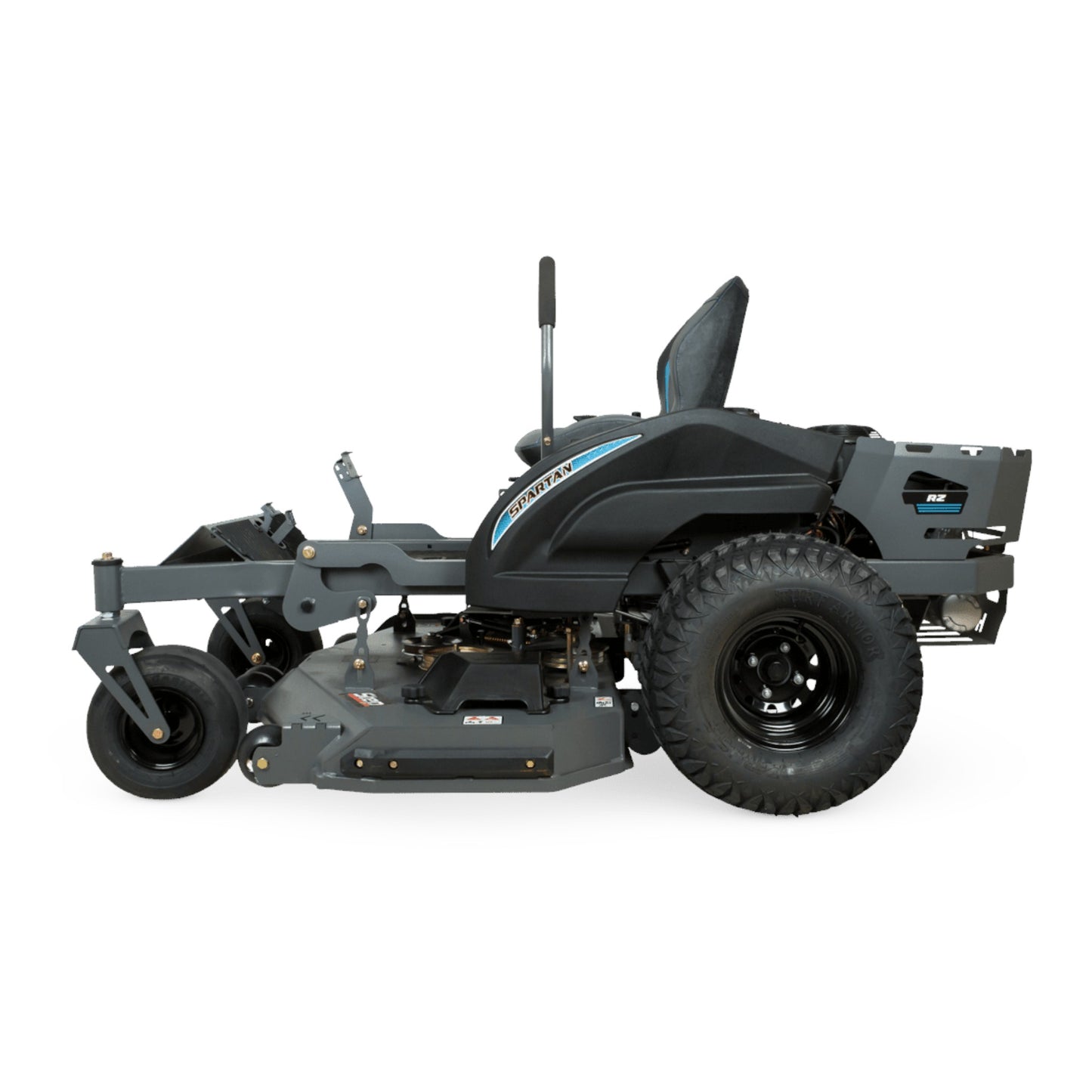

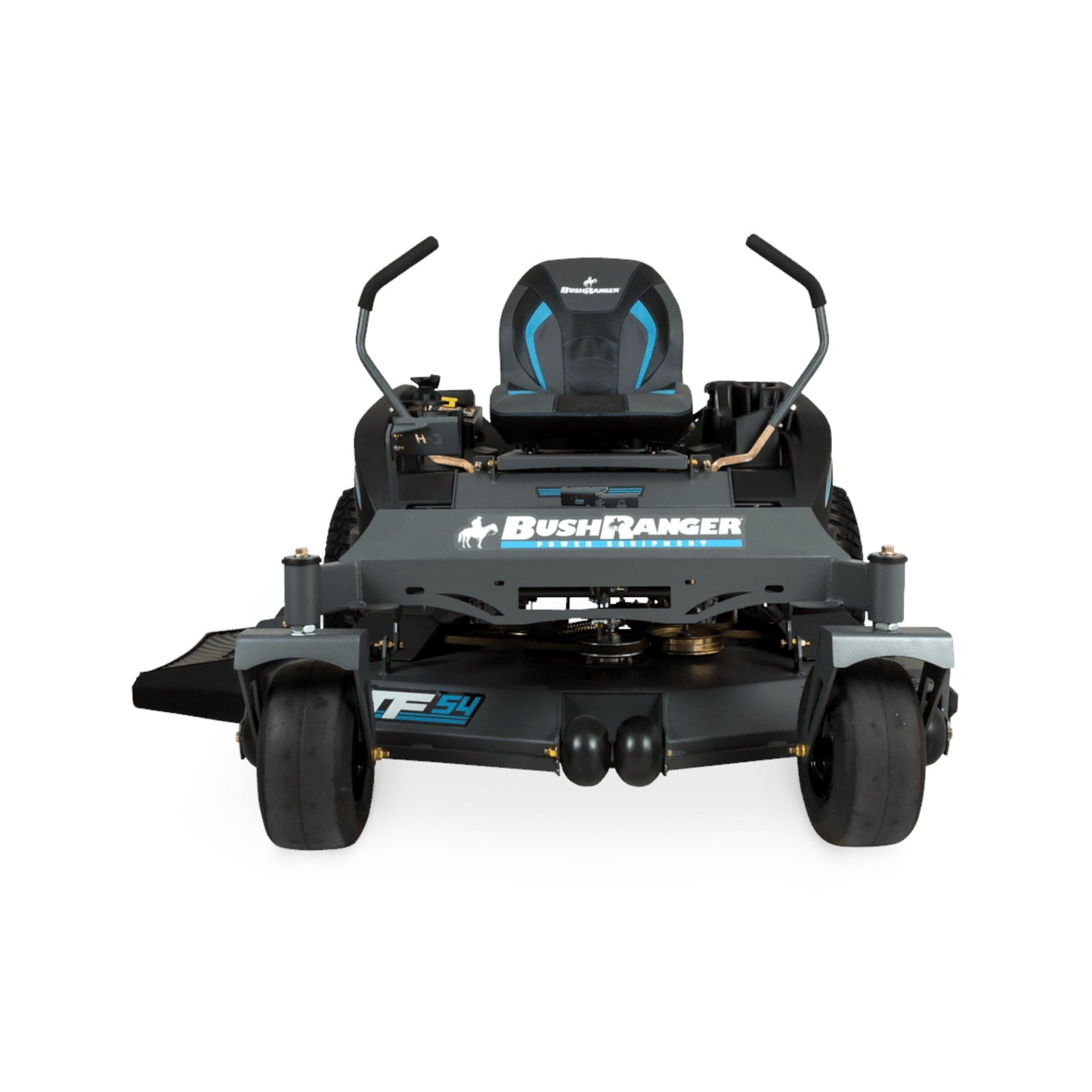

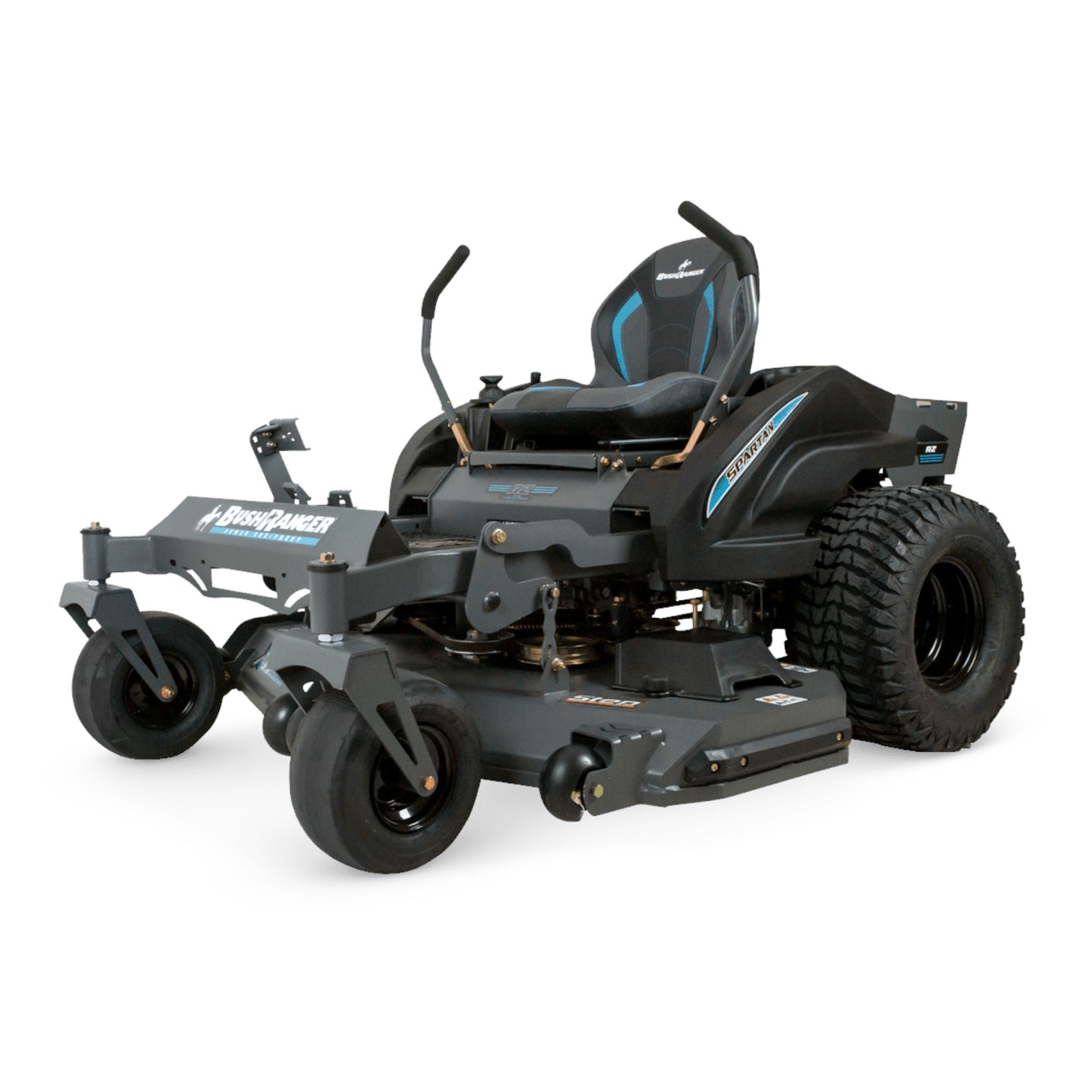

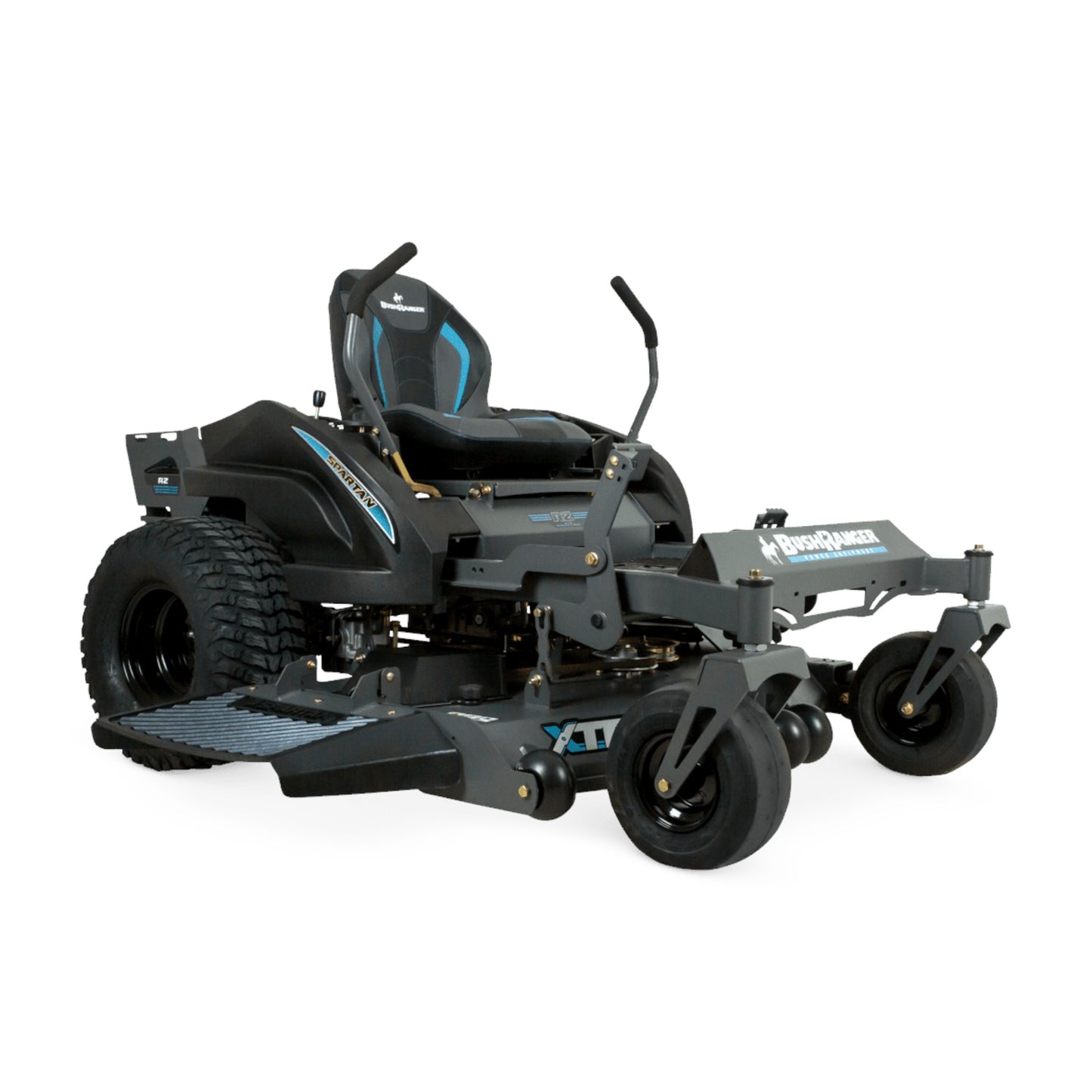

Bushranger Spartan RZ 54" Zero Turn Mower

Bushranger Spartan RZ 54" Zero Turn Mower

Regular price $12,499.00 AUD
Regular price $13,499.00 AUD Sale price $12,499.00 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

The Bushranger Spartan RZ54 is ideal for the small to mid acreage homeowners, or smaller scale commercial operators. Equipped with a Kawasaki V-Twin Engine and packed with features, we can assure you it will feel and perform like a professional grade mower at a fraction of the price.

WATCH THE VIDEO

Kawasaki FR691V premium and commercial grade V-Twin engine
Engine guard.
Up to 13.6 kph top speed.
18.9 litres fuel capacity.
Heavy-duty fabricated steel, 5” deep, full floating deck.
Precision deck height pin with 12 adjustable cut heights and locking travel height.
Cast aluminium sealed spindles with sealed double bearings.
Long lasting deck belts are designed with large idler pulleys to minimize wear.
Vibration control deck system.
Fabricated heavy-duty steel frame.
Adjustable steering levers.
ZTR is perfectly balanced with low centre of gravity.
GT-Trac for precision traction, balance and control on inclines.
TUFF TORQ 400 series transaxles.
Foot operated parking brake.
Control panel with LCD display, an engine hour meter, mower deck hour meter and tachometer.
Push-start keypad.
12v outlet with plug and play wiring system.
Cup holder.
Seat: GBR-7 Elastomer.
22" drive tyres Bias ply - turf tread.
13" front caster tyres - smooth tread.

Warranty Information

Domestic Warranty
3 Years / 300 Hours Domestic Warranty (whichever comes first)
Commercial Warranty
3 Years / 300 Hours Commercial Warranty (whichever comes first)
Hire/Rental Warranty
No Hire / Rental Warranty

Miscellaneous

Blade(s)
(3) Heavy-duty blades

Dimension Specs

Dry Weight
362.8kg
Height
46" (1168.4 mm)
Width
55.5" (1409.70 mm) w/discharge chute up
Length
84" (2133.6 mm)

Zero Turn Mower Specs

Ground Speed - Forward
Infinitely variable up to 0-13.6 kph
Brakes
Foot-operated parking brake
Caster Tyres
13” smooth tread
Tyres - Drive
22”, turf tread
Seat
GBR-7 Elastomer
Construction
Mainframe 1.5” x 3” (38.1 mm x 76.2 mm) powder coated Fusion-Bonded solid steel bridge frame. Front caster wheels mounted with commercial duty greaseable roller bearings on each wheel
Hour Meter
Standard
Controls
Hand-operated choke, throttle, push button key, electric mower clutch, foot pedal parking brake
Cup Holder
Large Cup holder moulded into the right-side mud guard
Deck System
Side-Discharge: 54" (1372 mm) cut. (3) Blades, deck is suspended at two points at the rear and two in front. Includes deck-mounted anti-scalp wheel(s) to improve flotation in rolling and uneven terrain
Deck Lift
Foot-operated
Deck Construction
Fabricated 7 Gauge with 7 gauge spindle mounts and 9/16 impact bar
Blade Drive
V-belt drive to spindles with electric clutch. Spring tension idler pulleys for extended belt life
Spindles
7 Spindles
Drive System
V-belt drive from engine crankshaft
Discharge Chute
High density, rubberised
Open Deck
Grass clears deck and discharge chute more easily due to the design (No restricting bar on the discharge side)
Steering
Twin-lever steering provides independent control of each drive wheel. Speed, forward, reverse, brake, and turns are all controlled with hand-operated controls

Engine and Fuel Specs

Engine
Kawasaki FR691V
Type
Air cooled, 90-degree V-Twin, normally aspirated petrol engine
Horsepower
23.0 hp (17.2 kW) @ 3600 rpm (Please Note: Horsepower rating as tested to SAE J1995 Standards).
Cooling
Air cooled. Flywheel fan
Fuel
Unleaded fuel - maximum of 10% ethanol in fuel (see engine manufacturers specifications)
Fuel Filter
Replaceable, automotive-type
Oil Filter
Spin-on engine oil filter / Total oil capacity 2.1 litres with filter.
Air Filter
Cartridge air filter
Fuel Capacity
18.9 Litres
Governor
Mechanical

Hydrostatic Drive System Specs

Hydrostatic Drive System
Dual hydrostatic TUFF TORQ 400 series transaxles

Cutting Dimensions

Cutting Widths
54" (1372 mm) cut side discharge
Cutting Height(s)
Precision deck height pin. 1” to 4.25” (25.4 mm to 107.95 mm) with 12 adjustable cut heights in between plus travel lock
