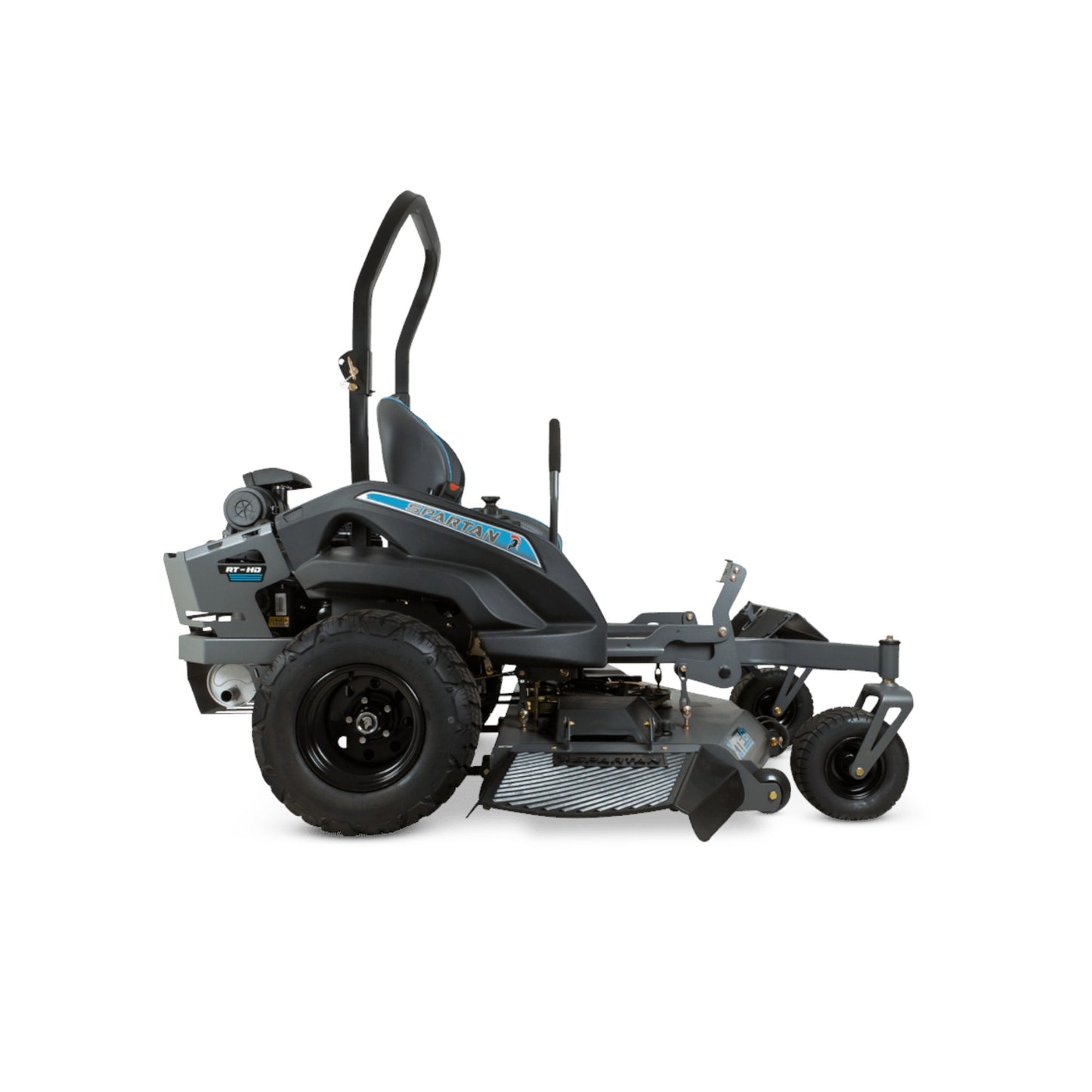

Bushranger Spartan RTHD 61" EFI Zero Turn Mower

Bushranger Spartan RTHD 61" EFI Zero Turn Mower

Regular price $24,499.00 AUD
Regular price $25,999.00 AUD Sale price $24,499.00 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

Description

The Bushranger RTHD series ZTR’s are a heavy-duty commercial mower that comes ready to tackle properties of all sizes. The Bushranger RTHD series is bursting with premium features that all come standard and makes this ZTR stand out from the competition. From the premium quality Kawasaki FX850V-EFI V-Twin Electronic Fuel Injected engine to the huge long-range fuel tanks and the impressive top speed you will have your job done safely and in comfort in no time at all. It boasts safety features that the competition wish they had like GT Trac for the best traction on inclines, the easy touch brake system or the foot assist easy-lift cutting decks (which feature four bearing per cutting spindle). While for operator comfort while mowing you must try out the ergonomic cockpit with all controls in easy reach and the TBC-3 TecsPak elastomer dampeners with 360 floating seat system. This truly is a premium feature packed, no-nonsense commercial grade mower at an affordable price.

WATCH THE VIDEO

Features



Kawasaki FX850V-EFI premium and commercial grade V- Twin Electronic Fuel Injected engine.
Engine guard.
Up to 17.7 kph top speed.
35.9 Litres fuel capacity.
Heavy-duty fabricated steel, 6” deep, reinforced 7ga XTF (Xtreme Turf Flow) deck.
Change on the go deck height dial with shock-assisted deck foot lift.
Cast aluminium spindles with sealed bearing four per spindle.
Long lasting deck belts are designed with large idler pulleys to minimise wear.
Vibration control deck system.
Fabricated heavy-duty steel frame.
ZTR is perfectly balanced with low centre of gravity.
GT-Trac for precision traction, balance and control on inclines.
Parker HTJ 12cc wheel motors.
Foot-operated parking brake.
Control panel with LCD display, an engine hour meter, mower deck hour meter and tachometer.
Push-start keypad.
12v Outlet.
Large cup holder.
Phone holder.
Deep storage tray.
Seat - TBC-3 TecsPak elastomer dampeners with 360 floating seat system.
24" drive tyres - turf radials.
13" front caster tyres - radial.
Tow hitch.


Warranty Information

Domestic Warranty
3 Years / 500 Hours Domestic Warranty (whichever comes first)
Commercial Warranty
2 Years / Unlimited Hours Commercial Warranty
Hire/Rental Warranty
No Hire / Rental Warranty

Miscellaneous

Blade(s)
(3) Heavy-duty blades

Dimension Specs

Dry Weight
519.2kg (1144.6 lbs)
Height
75" (1905 mm) With ROPS o 54” (1372 mm) Folding ROPS down
Width
62.5" (1587.5 mm) w/discharge chute up
Length
84" (2133.6 mm)

Zero Turn Mower Specs

Ground Speed - Forward
Infinitely variable up to 0-17.7 kph
Brakes
Foot-operated parking brake
Caster Tyres
13”, Radial
Tyres - Drive
24” Turf radials
Seat
TCB-3 TecsPak Elastomer Dampeners with 360 Floating System
Construction
Fabricated 7 Gauge with 7 gauge spindle mounts and 9/16 impact bar
Hour Meter
Standard
Controls
Throttle, push button key, electric mower clutch, foot pedal parking brake
Cup Holder
Large Cup holder moulded into the left-side mud guard. Accommodates nearly any cup size
Deck System
Side-Discharge: 61" (1550 mm) cut. (3) Blades, deck is suspended at two points at the rear and two in front. Includes deck-mounted anti-scalp wheel(s) to improve flotation in rolling and uneven terrain
Deck Lift
Foot-operated with shock assist
Deck Construction
Fabricated 7 Gauge with 7 gauge spindle mounts and 9/16 impact bar
Blade Tip Speed
18,749 fpm / 5,714.69 mpm
Blade Drive
V-belt drive to spindles with electric clutch. Spring tension idler pulleys for extended belt life
Spindles
7 Gauge
Drive System
V-belt drive from engine crankshaft
Discharge Chute
High density, rubberised
Open Deck
Grass clears deck and discharge chute more easily due to the design (No restricting bar on the discharge side)
Steering
Twin-lever steering provides independent control of each drive wheel. Speed, forward, reverse, brake, and turns are all controlled with hand-operated controls

Engine and Fuel Specs

Engine
Kawasaki FX850V-EFI premium and commercial grade V-Twin engine
Type
Air cooled, 90-degree V-twin, electronic fuel injected petrol engine
Horsepower
29.5 hp (22.0 kW) @ 3600 rpm (Please Note: Horsepower rating as tested to SAE J1995 Standards.)
Cooling
Air cooled. Flywheel fan
Fuel
Unleaded fuel - maximum of 10% ethanol in fuel (see engine manufacturers specifications)
Fuel Filter
Replaceable, automotive-type
Oil Filter
Spin-on engine oil filter / Total oil capacity 2.5 U.S. qt. (2.4 litres) with filter
Air Filter
Heavy-duty, canister style air cleaner to extend the service interval for excessive, dirty applications and improved performance
Fuel Capacity
35.9 Litres
Governor
Integrated Electronic

Hydrostatic Drive System Specs

Hydrostatic Drive System
Parker HTJ wheel motors

Cutting Dimensions

Cutting Widths
61" (1550 mm) cut Side discharge
Cutting Height(s)
Change on the go deck height dial with shock-assisted deck foot lift. 1.5” to 5.5” (38.1 mm to 139.7 mm) with 15 adjustable cut heights in between plus travel lock
